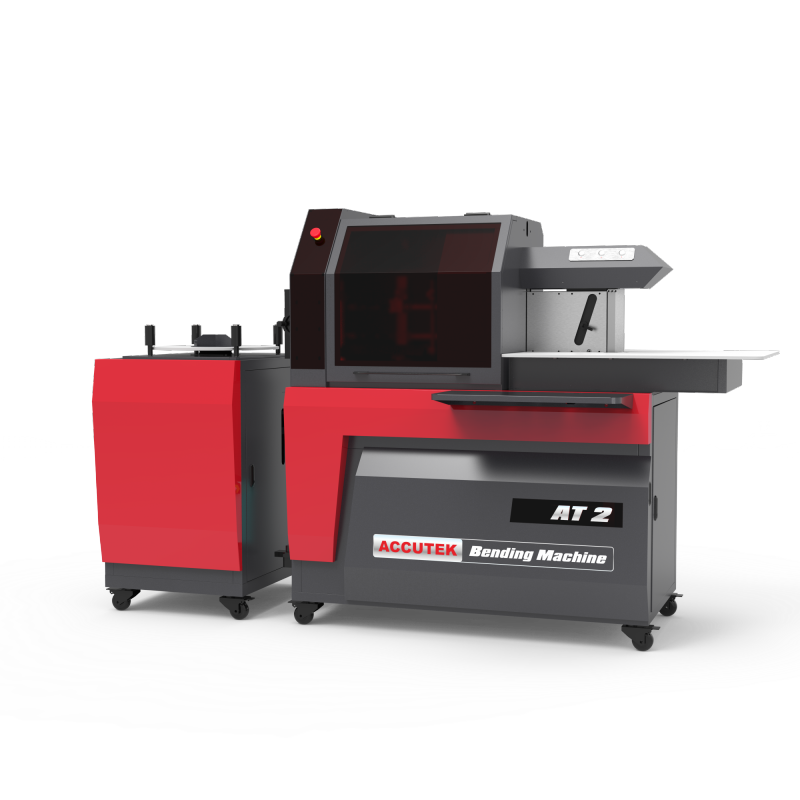

ACCUTEK AT2 3d letters signage machine High Edge Full Function Bending Channel Letter Machine

ACCUTEK AT2 3d letters signage machine High Edge Full Function Bending Channel Letter Machine

1. Compared with the cheap channel letter bender, AT2 is equipped with 4 axles Japan Fuji servo motor, which can achieve precise control of positioning, feeding and bending speed, as well as the torque. AT2 helps you reduce material waste and save more money!

2. The integral casting structure of main parts assures the stability and less noise for its less number of junction. Comparing with others, AT2 is stronger and more environmentally friendly.

3. AT2 has been sold to many countries and regions and receive high praise due to its mature technology. Durable and long lasting is the key characteristic of AT2.

+86 15165087027
youxiang@jinyuancnc.com

Technical parameters

AT2
APPLICABLE MATERIALSThickness ≤1.2mm plate(Stainless steel,Galvanized plate,Aluminum plate) Profile, side edge aluminum coils(customize)
MATERIAL HEIGHT25-130mm
MINIMUM BENDING ANGLER4
SERVO SYSTEM4 axis Japan Fuji Servo
BOUNDARY DIMENSIONL247cm×W105cm×H158cm (Include Table and Feed Tank)


Product Features

  • baec8df6fb368481ca9a51d96547c544

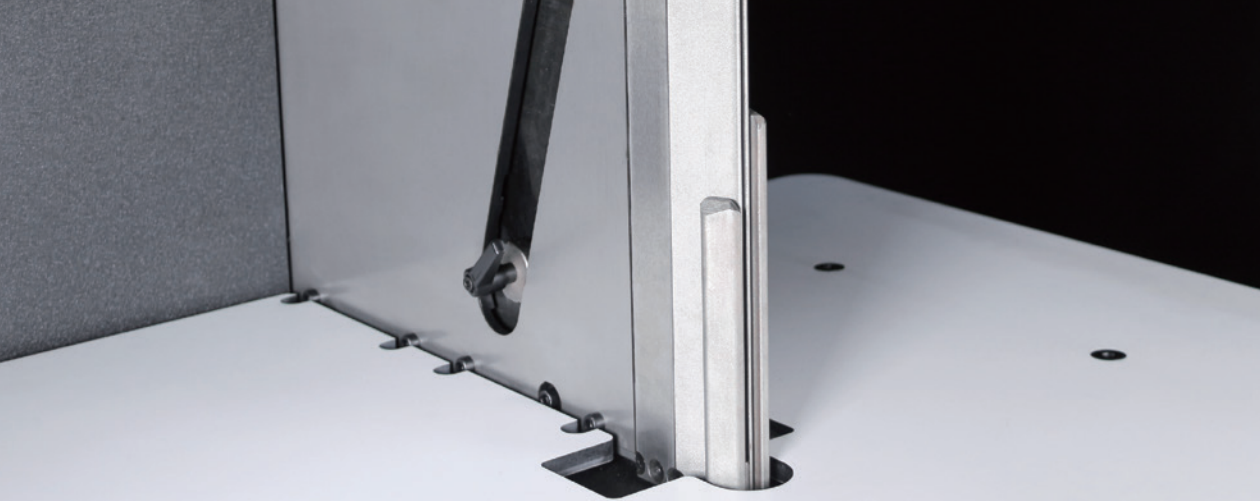

    BENDING SYSTEM
    The bending shaft is equipped with Japan Xinbao high-precision planetary reducer and Japan Fuji servo to form a high-speed and high-precision bending mechanism The integral cast bending structure protects bending stability The best forming performance of polar arc and small arc is achieved by alternating bending of double scimitars
  • af84e9e119a878d83b58214b6707fd21
    FEEDING SYSTEM
    The feeding structure and the robot body are cast as a whole, and the fixture is treated with rounded corners, which will not cause pinch marks on the surface of the material Fuji servo, grinding ball screw and linear guide ensure smooth and fast feeding; When processing wide materials and thick materials, the same "send moving" and "send accurate" The feeding unit is driven by synchronous belt with high precision and low noise
  • aaaaead7c5daa49135d87e05708d9528
    SLOTTING SYSTEM
    The whole casting type slotting structure is equipped with Japan Fuji servo to form a high strength slotting system, which is capable of processing wide and thick materials for a long time and is more stable. The planer + milling cutter configuration can meet theprocessing of flat plates, aluminum profiles and hookedaluminum coils.
  • 975648cffe83681d2b7976f6019b69ff
    OPTIONAL AUTOMATIC PUNCHING SYSTEM
    In order to meet the flexible processing needs and the different requirements of the hole distance of the shell of various sizes, the drilling distance can be set in the software According to the setting of the hole distance, the punch point is automatically generated, and the generated point automatically avoids the slot point, and the punch point can be added or deleted in the software
