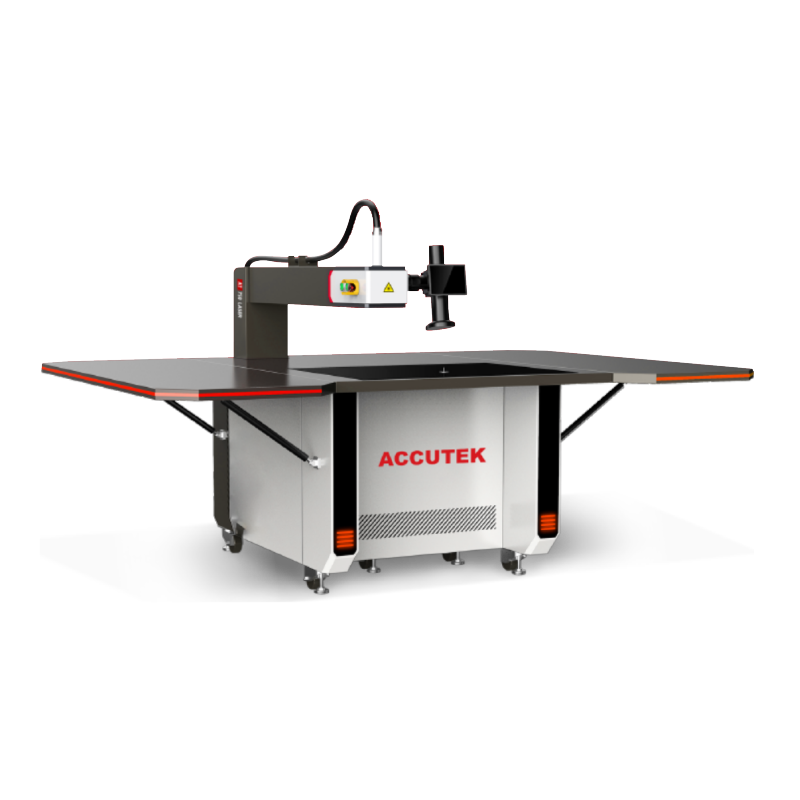

AT 750W PULSE HANDHELD/COUNTERTOP DUAL  PURPOSE WELDING MACHINE

AT 750W PULSE HANDHELD/COUNTERTOP DUAL PURPOSE WELDING MACHINE

- Save electricity

It only uses 1 kilowatt-hour of electricity in an hour. Performance has been enhanced by 150%.

- Maintenance-free

The power margin without light attenuation exceeds 30% within five years.

Let you use it with peace of mind and without worry.

- After retail

All internal components are made of first-line brands.

The entire machine is guaranteed for two years.

- Zero consumables

The pump source optical path design is adopted.

There are no other optical components.

- Wide processing range

The super-long optical cable connection welding head is convenient for welding large and small workpieces, and the operation is easy.

- The heat-affected zone is small

The surface of the workpiece will not deform, with high precision and low cost, and no consumables are required.

- Effect of high efficiency

The welding is firm with no protrusions on the surface, requiring no polishing or grinding, which saves time and effort.

Technical parameters

LASER WAVELENGTH1080NM±5NM
MAXIMUM PEAK POWER750W
PULSE WIDTH0.2-50 ms
ENERGY VOLATILITY< 1.5%
OPTICAL FIBER OUTPUT NUMBER1,RQB
LENGTH OF OPTICAL FIBER ARMOR3M-6M(customizable
COOLING METHODWater cooling
EQUIPMENT POWER CONSUMPTION1200W
ELECTRICITY REQUIREMENTSAC220V±5%,50/60HZ
LAYER SWITCHING TIME>0.5 MS
WORKBENCH SIZE1850*1500*1210mm
OPERATING TEMPERATURE OF THE LASER10 °C - 45 °C


Product Features

sample
