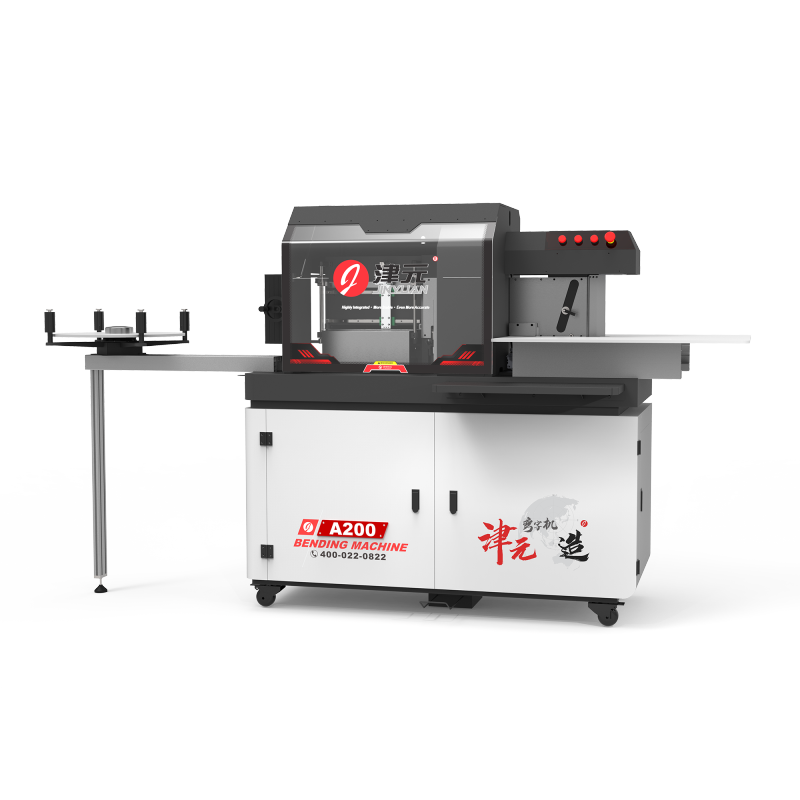

A200&A200S Automatic Bending Machine

Name: A200&A200S Automatic Bending Machine
SKU: 0

Based on the Jinyuan 5th Generation Platform

Feed structure unit Bend the structural unit Bend the structural unit

The Specialized Servo System of Jinyuan Bending Machine

For the new products, the system for new adjustment will be bending speed, precision, bending efficiency better play

Slotting system

Overall cast-type slotting structure

Equipped with customized server drivers，

form high strength slotting system

Persistence is competent for wide&thick materials

Technical parameters

TYPE	A200	A200S
MATERIAL SPECIFICATION	Thickness≤1.2mm Flat aluminum	Thickness≤1.2mm Flat\|Aluminum profile\|Single edge aluminum\|3mm Flat aluminum( customized )
MATERIAL WIDTH	10-200mm

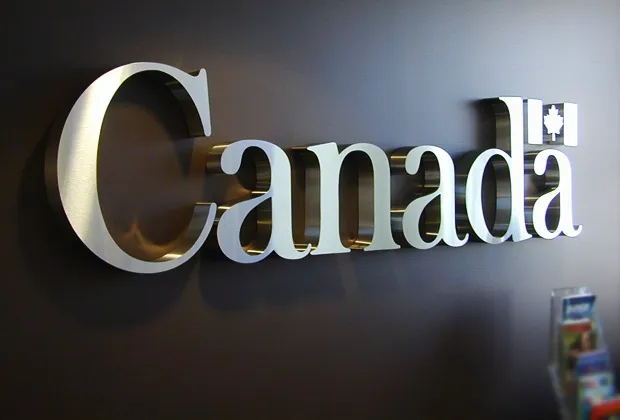

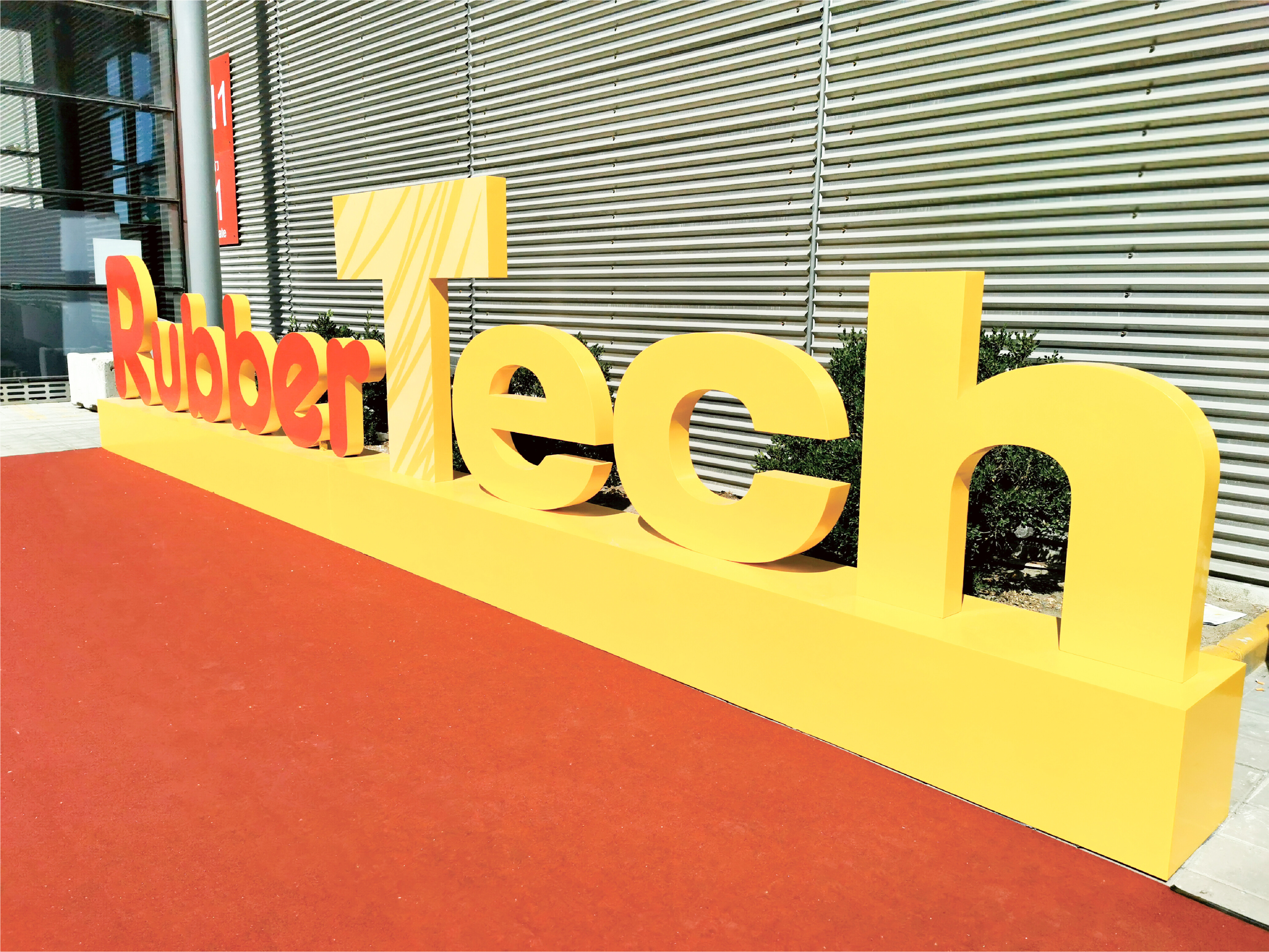

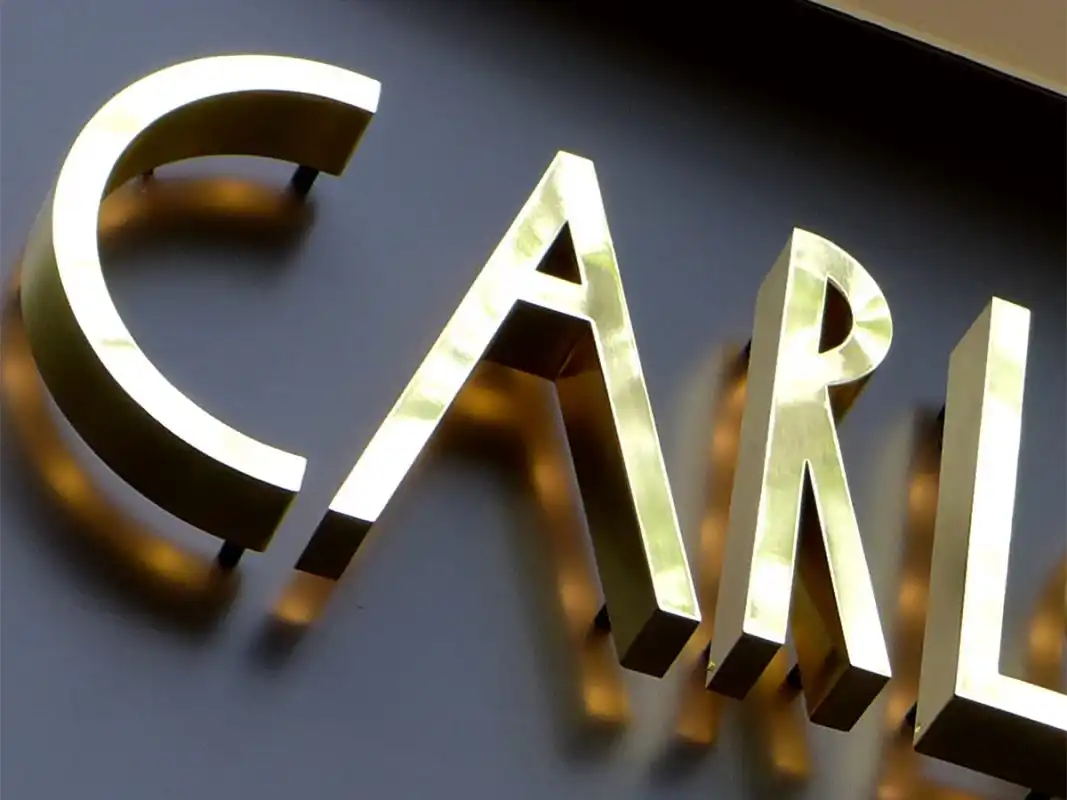

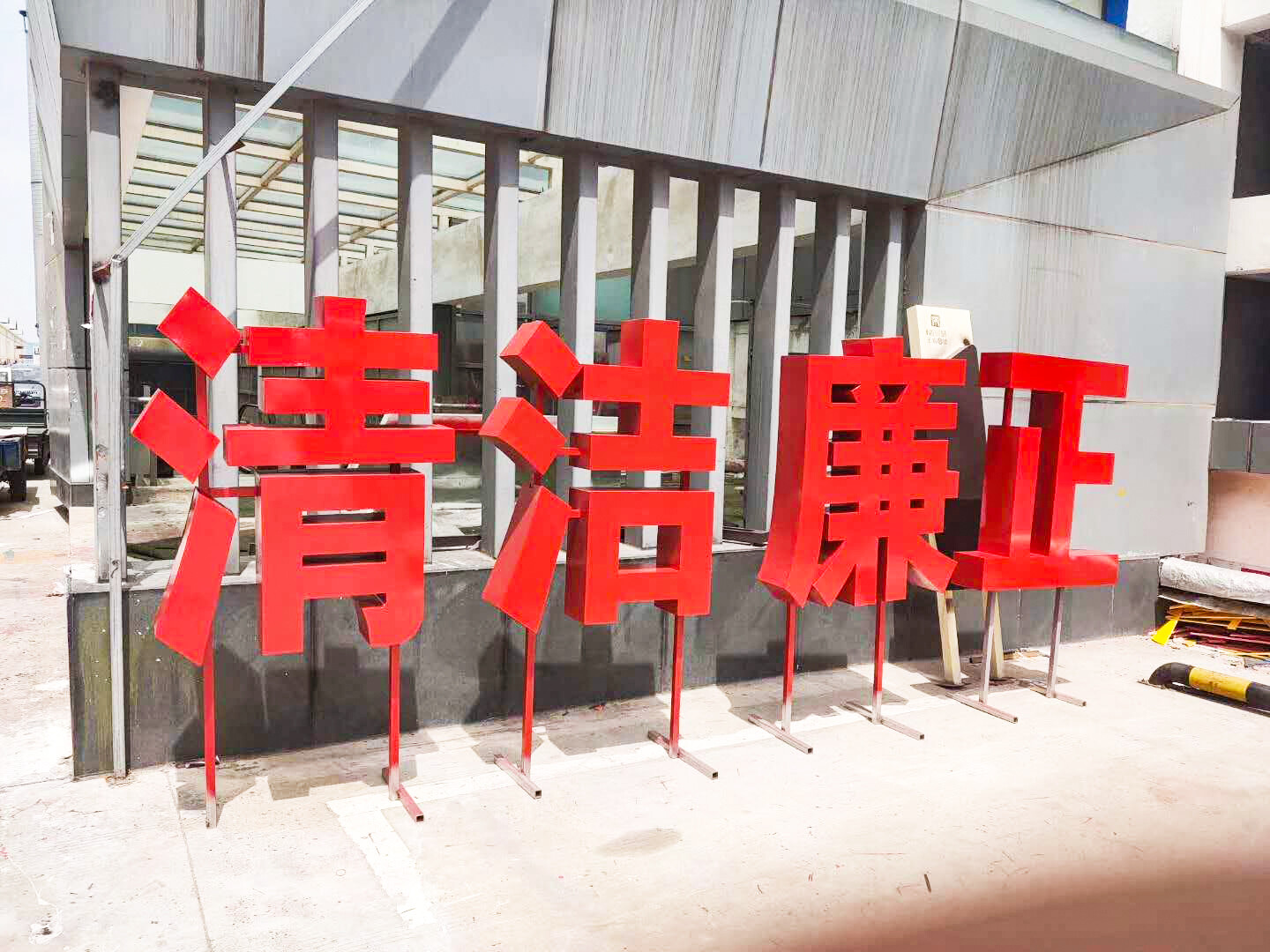

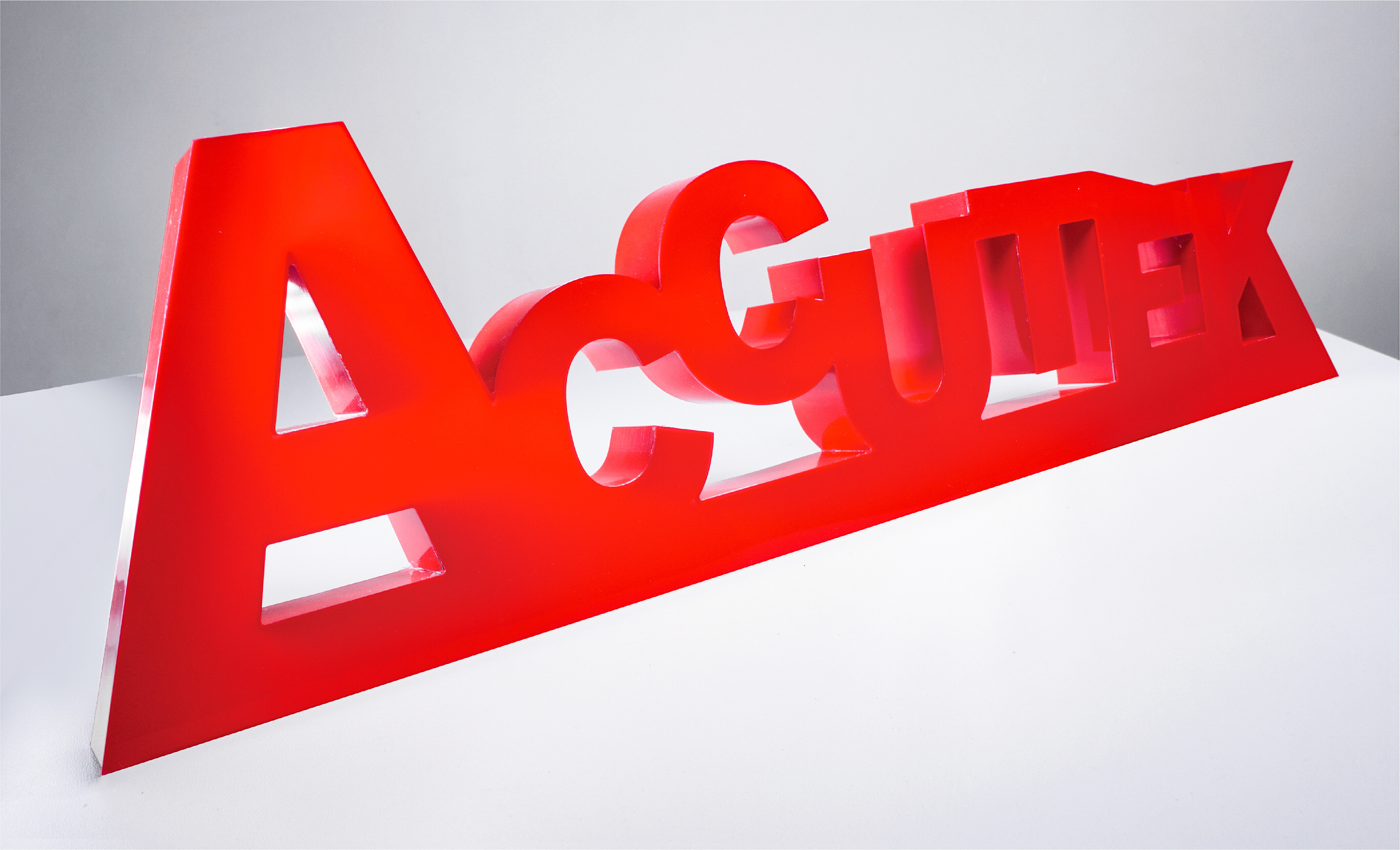

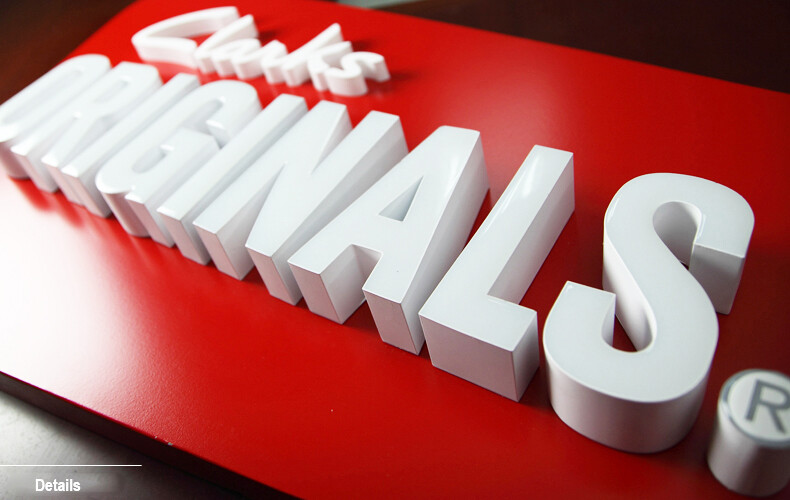

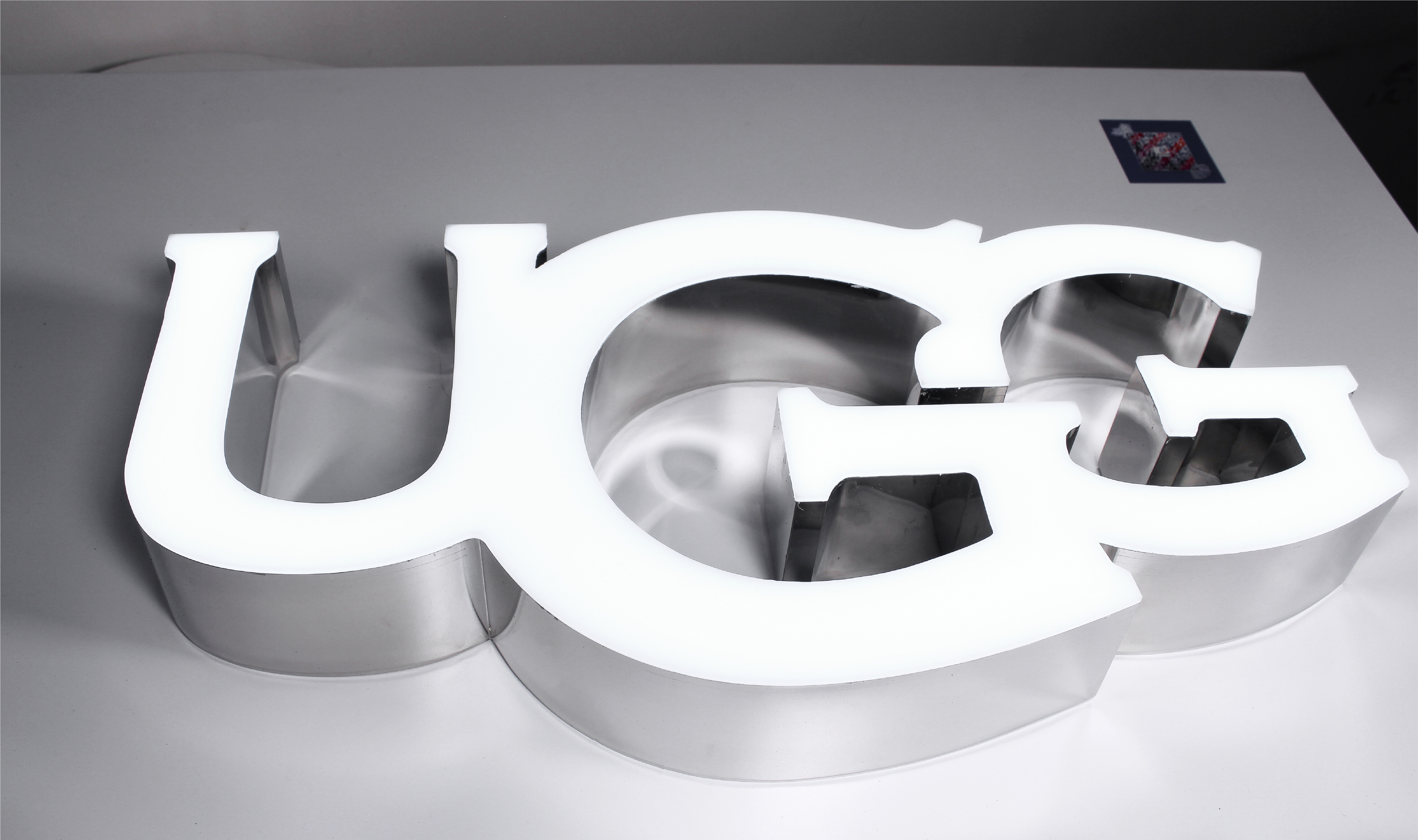

SCOPE OF APPLICATION	Seiko Stainless Steel Letter \| Epoxy resin letter \| Endless Acrylic Letter \| LED Frontlit Channel Sign \| MINI Landscape Letter \| Party building sign \| Landscape letter
MIN.BENDING ANGLE	R6
SERVO CONFIGURATION	Slotting axis and bending axis with specialized servo system
FEEDING SYSTEM	Integral casting type of manipulator feeding system
SLOTTING SYSTEM	Integrated casting type of planer slotting system	Integrated casting type of Planer&Milling slotting system
BENDING SYSTEM	Integrated casting type of double blade alternating bending system
OPTIONAL CONFIGURATION	Automatic punching system
POWER	AC 220V 50Hz 2.0KW	AC 220V 50Hz 3.0KW
AIR SUPPLY	0.6m3/min
DIMENSION	L2700×W950×H1450 （Include Table and Feed Tank）

Integrated casting type of core structure
Integrated casting type, CNC processing,so that eliminate the hidden dangers caused by loose parts and improve operational stability

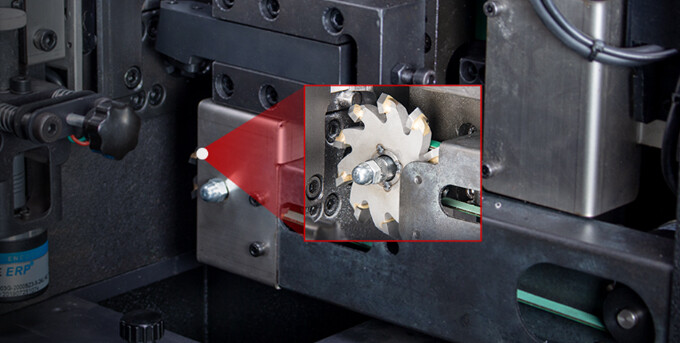

Add milling cutter configuration（A2000S）
Meet the processing of aluminum profile and single edge aluminum
Specialized servo system
Special Edition system for new adjustment will be bending speed, precision, bending efficiency better play
Slotting system
Overall cast-type slotting structure,form high strength slotting system
Persistence is competent for wide & thick materials
Slotting upgraded&Same depth
Different thicknesses of materials can be processed without adjusting the depth of slotting

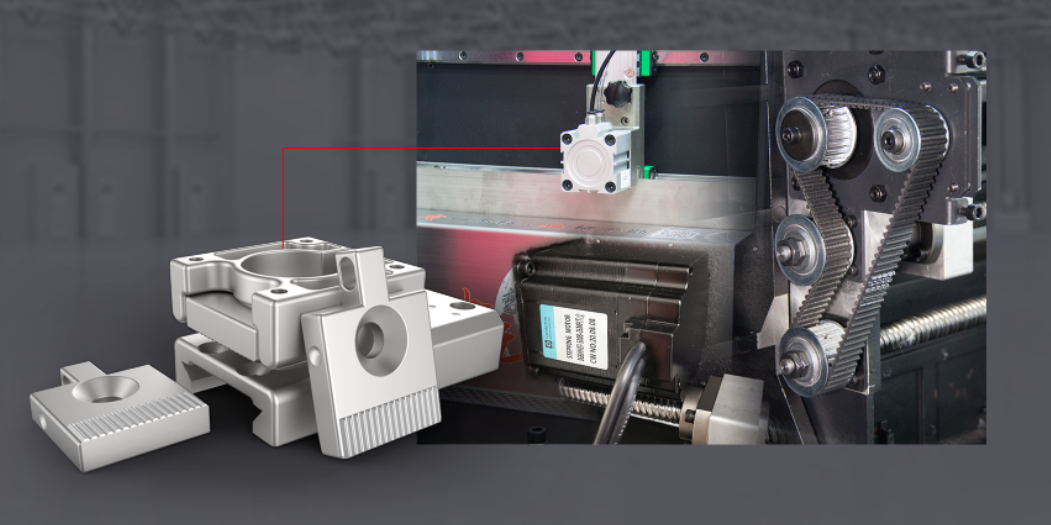

Casting technique, manipulator feeding
The body of the manipulator is integrated casting type ,the clamps on them manipulator are rounded,no surface marks on the material
Smarter software systems
Automatic feeding calibration by ONE-CLICK, without manual measurement
Upgraded feeding system fast and powerful
The feeding axis upgraded to N.M hybrid stepping motor Significant increase in feeding speed & No lag when feeding heavy materials
Automatic punching system（Optional）
The punching distance can be set, and the software will automatically generate punching points based on the setting of each hole distance.
