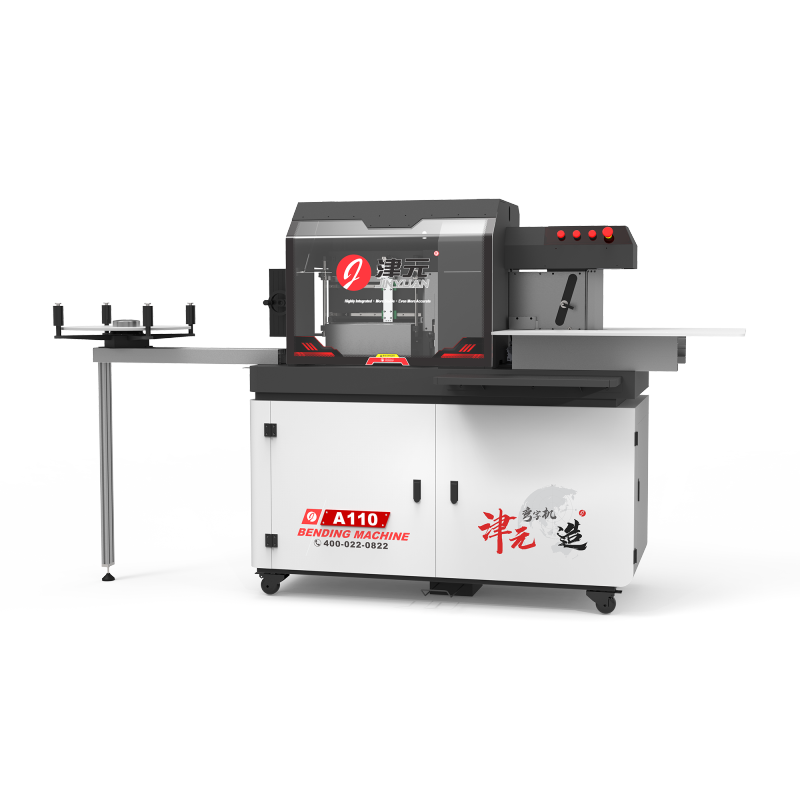

A110 Fine Letter Bending Machine

Name: A110 Fine Letter Bending Machine
SKU: 0

The Specialized Servo System of Jinyuan Bending Machine

For the new products, the system for new adjustment will be bending speed, precision, bending efficiency better play

Slotting system

Overall cast-type slotting structure

Equipped with customized server drivers，

form high strength slotting system

Persistence is competent for wide&thick materials

Technical parameters

TYPE	A110
MATERIAL SPECIFICATION	Thickness≤1.0mm Plate Material
MATERIAL WIDTH	10-110mm

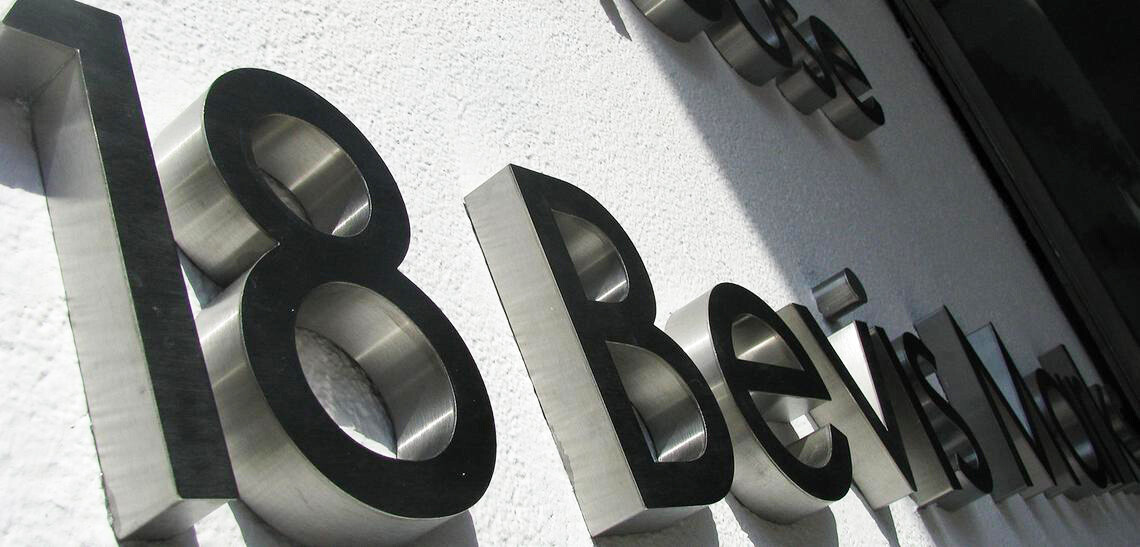

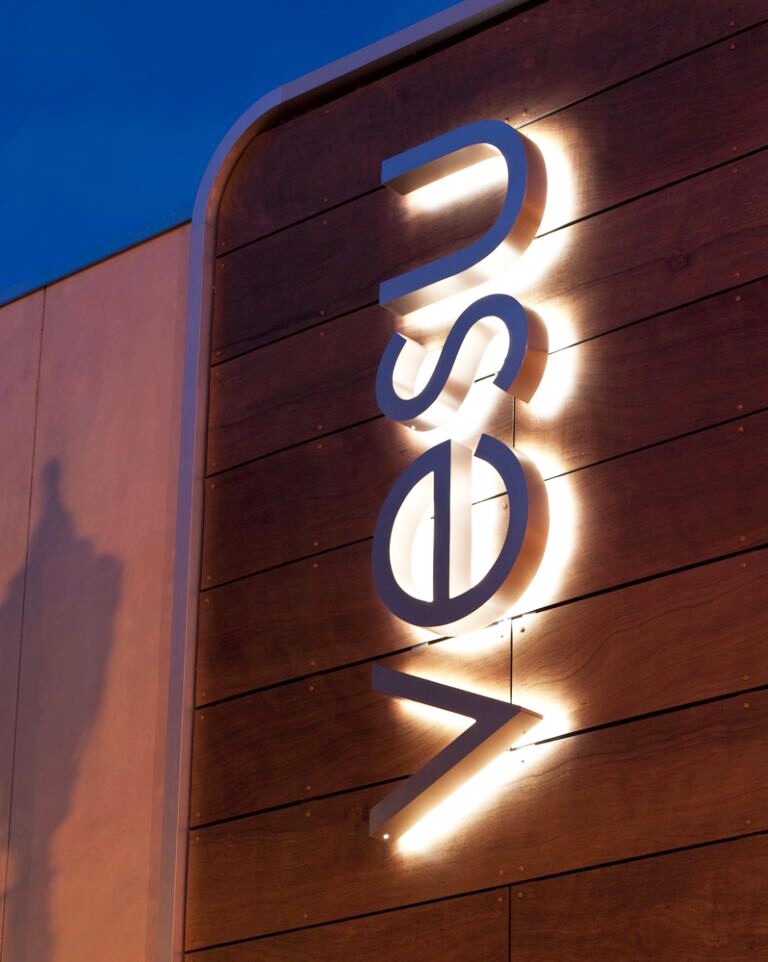

SCOPE OF APPLICATION	Seiko Stainless Steel Letter \| Epoxy resin letter \| Endless Acrylic Letter \| Light Box Letter
MIN.BENDING ANGLE	R3.5
SERVO CONFIGURATION	4-axis servo system
FEEDING SYSTEM	Mechanical arm feeding machine
SLOTTING SYSTEM	Planer alloy knife, double-knife dual drive slotting system
BENDING SYSTEM	Double blade alternating bending system
OPTIONAL CONFIGURATION	Automatic punching system
POWER	AC 220V 50Hz 3.0KW
AIR SUPPLY	0.6m3/min
DIMENSION	L2700×W950×H1450 （Include Table and Feed Tank）

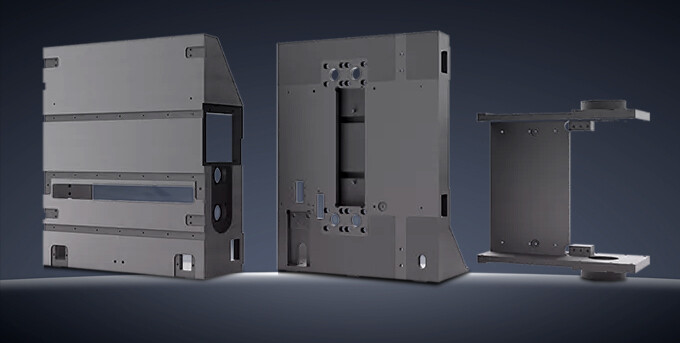

Integrated casting type of core structure
Integrated casting type, CNC processing,so that eliminate the hidden dangers caused by loose parts and improve operational stability

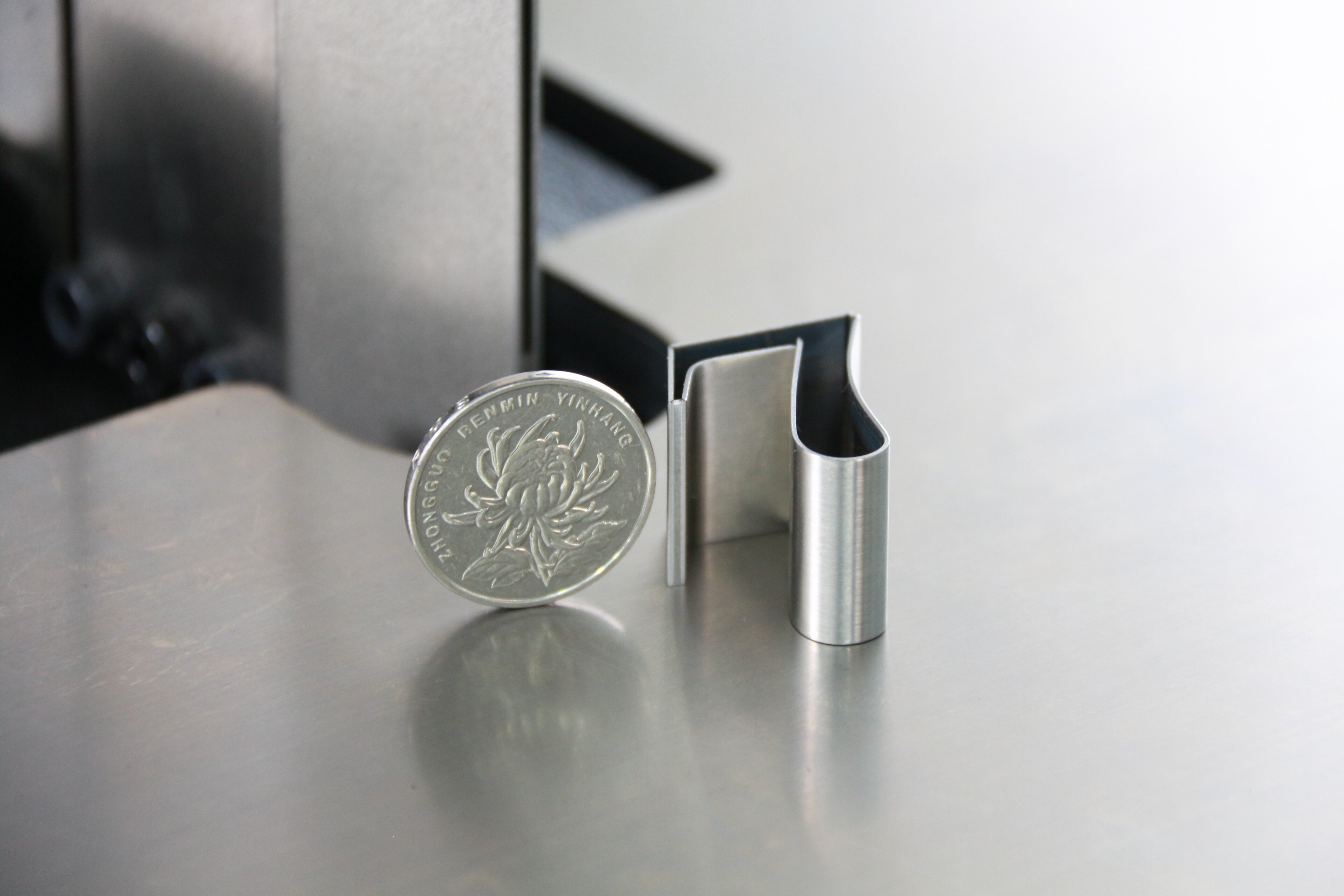

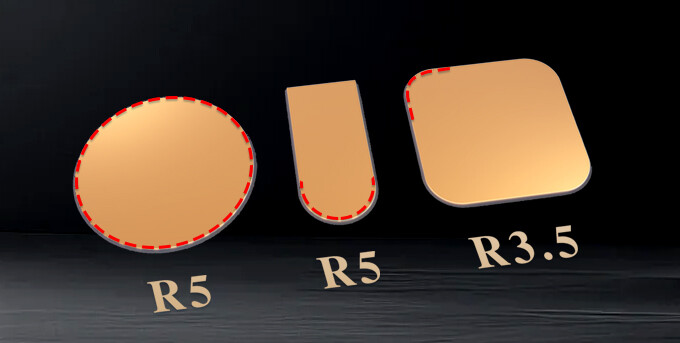

Minimum bending radius
The letter bending radius can be R5 and R3.5

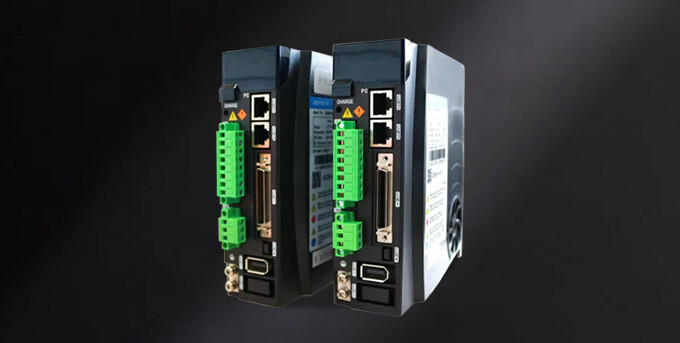

Specialized servo system
Special Edition system for new adjustment will be bending speed, precision, bending efficiency better play
Slotting system
Overall cast-type slotting structure,form high strength slotting system
Persistence is competent for wide & thick materials

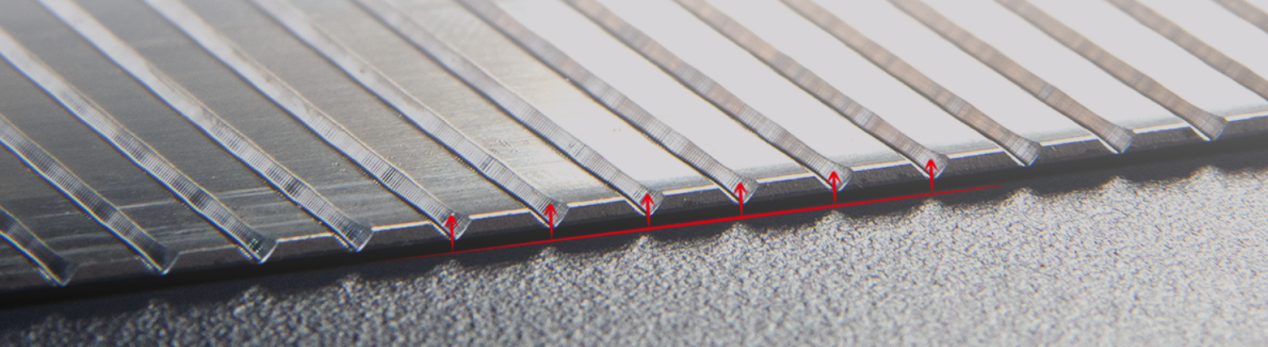

Slotting upgraded&Same depth
Different thicknesses of materials can be processed without adjusting the depth of slotting

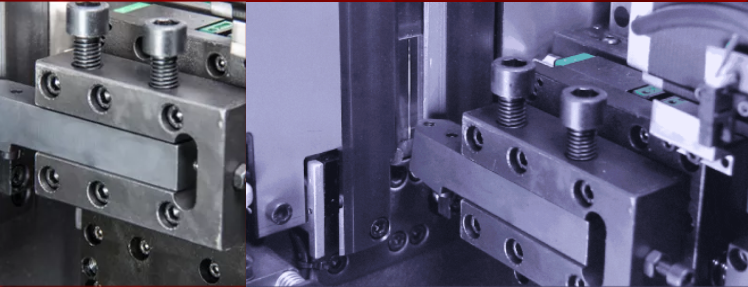

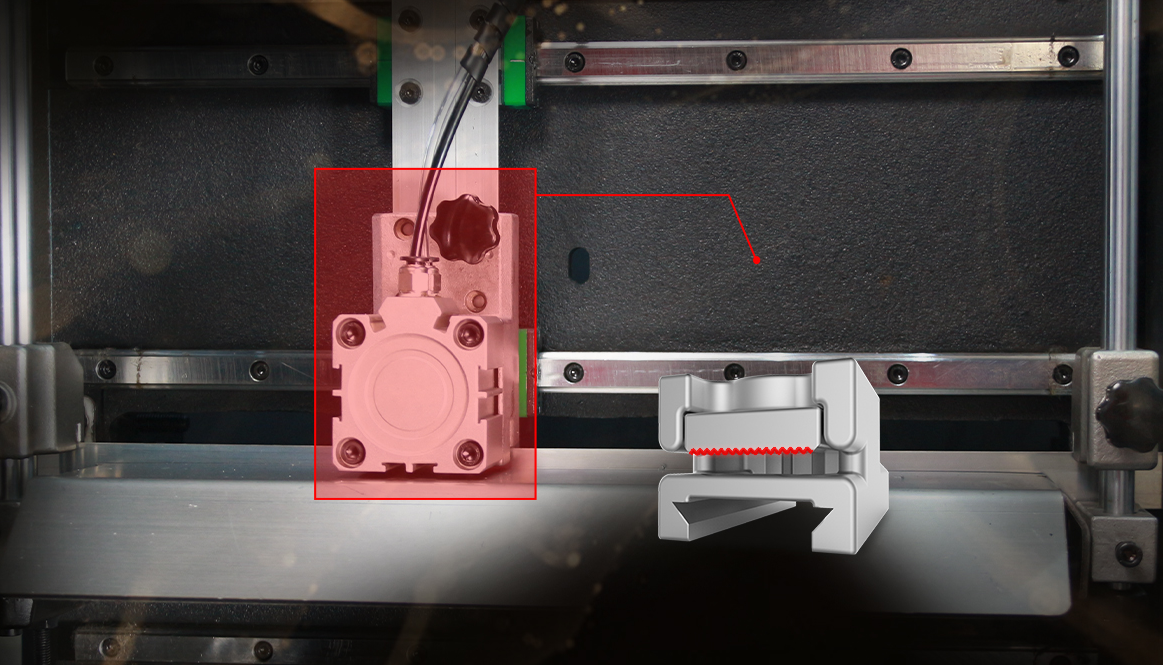

Casting Technique, Manipulator Feeding
The body of the manipulator is integrated casting type ,the clamps on them manipulator are rounded,no surface marks on the material

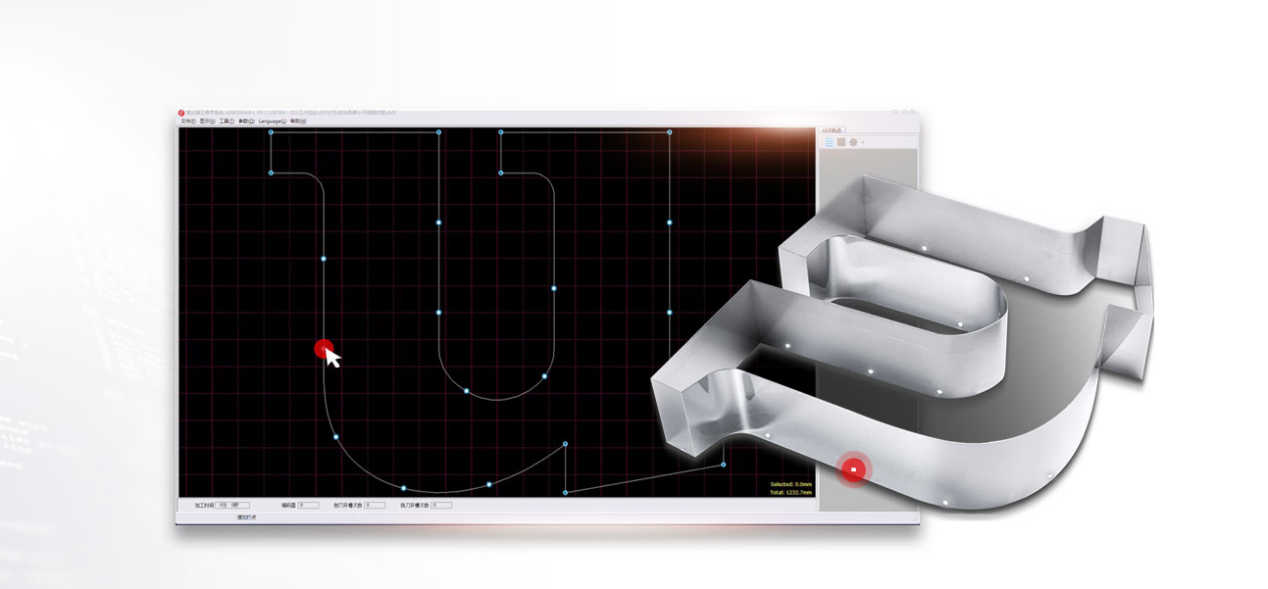

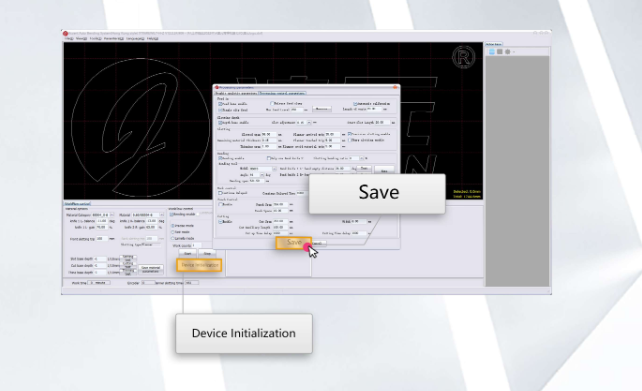

Smarter software systems
Automatic feeding calibration by ONE-CLICK, without manual measurement

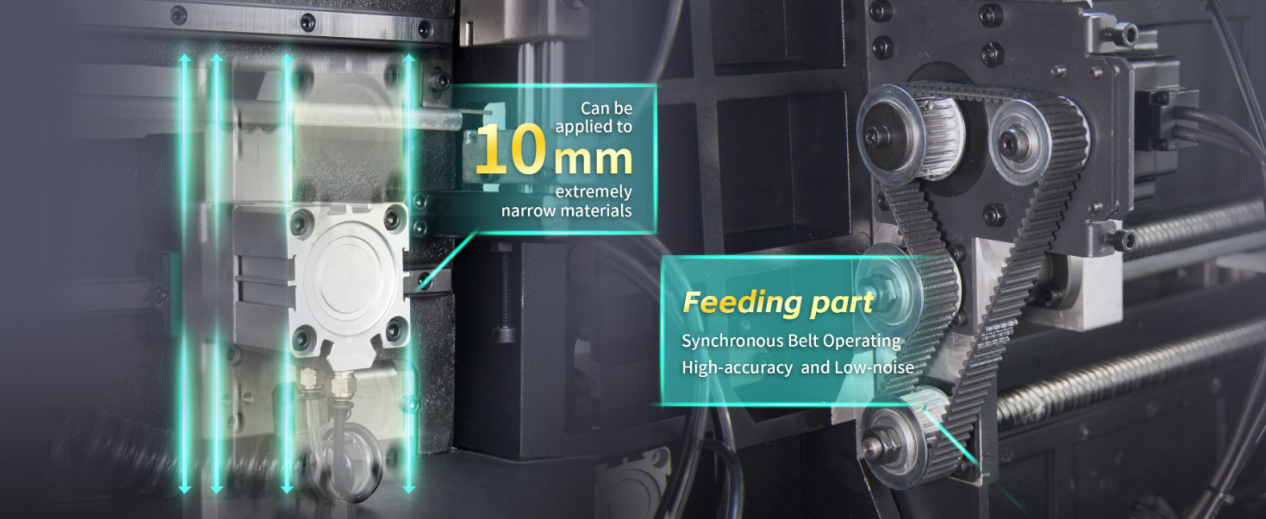

Feeding part
Synchronous Belt Operating High-accuracy and Low-noise
Can be applied to 10mm extremely narrow materials
Automatic punching system（Optional）
The punching distance can be set, and the software will automatically generate punching points based on the setting of each hole distance.
